Stripe

Stripe is an online payment processing platform designed for internet businesses. Integrating Stripe allows your application to handle transactions, subscriptions, and financial data securely.

Configuration Steps

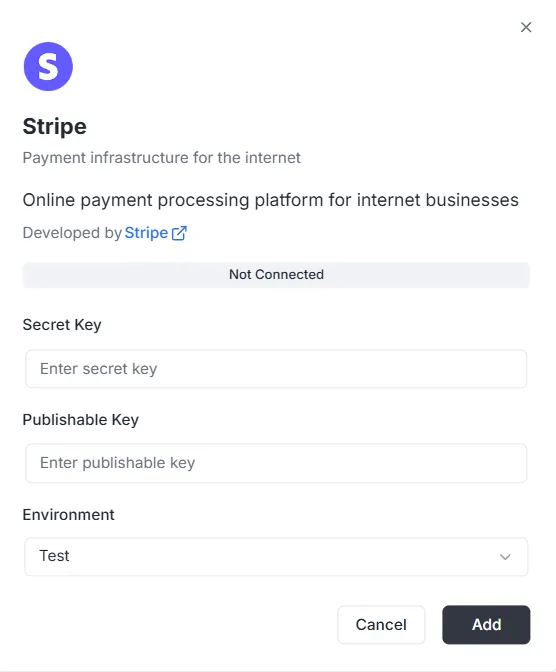

After selecting Stripe from the integration list, a configuration modal will appear. You must provide the following credentials from your Stripe Dashboard to establish the connection:

1. Secret Key

• Input: Enter your private Stripe Secret Key (usually starting with sk_) into the Secret Key field. This key allows the backend to authenticate secure requests.

2. Publishable Key

• Input: Enter your public Stripe Publishable Key (usually starting with pk_) into the Publishable Key field. This key is used for frontend implementation.

3. Environment

• Input: Select the appropriate environment context from the dropdown menu (e.g., Test for development/sandbox mode or Production for live processing).

Finalizing the Connection

Once the keys and environment are configured:

1. Review the status bar (currently showing Not Connected).
2. Click the black Add button at the bottom right to save the credentials and activate the payment integration.

Stripe Integration API Reference

• Configuration Management
• Customer Management
• Payment Intents
• Subscriptions
• Products and Prices
• Invoices
• Refunds
• Payment Methods
• Webhook Events
• Pagination
• Error Handling

Configuration Management

configureStripe

Creates a new Stripe configuration for the project and environment.

Mutation:

mutation ConfigureStripe (
  $input: ConfigureStripeInput!
) {
  configureStripe (
    input: $input
  ) {
    id
    publishableKey
    webhookUrl
  }
}

Input:

input ConfigureStripeInput {
  secretKey: String!          # Stripe secret key (sk_test_... or sk_live_...)
  publishableKey: String!    # Stripe publishable key (pk_test_... or pk_live_...)
  environment: StripeEnvironment!  # TEST or LIVE
  webhookSecret: String      # Webhook signing secret (optional)
}

Response:

type ConfigureStripePayload {
  id: ID!                    # Configuration ID
  publishableKey: String!    # Publishable key
  webhookUrl: String!        # Generated webhook URL
}

Example:

{
  "input": {
    "secretKey": "sk_test_...",
    "publishableKey": "pk_test_...",
    "environment": "TEST",
    "webhookSecret": "whsec_..."
  }
}

Notes:

• The secret key is encrypted with AES-256-GCM before storage
• Only one configuration per project/environment combination
• Returns error if configuration already exists

---

updateStripeConfig

Updates an existing Stripe configuration.

Mutation:

mutation UpdateStripeConfig (
  $input: UpdateStripeConfigInput!
) {
  updateStripeConfig (
    input: $input
  ) {
    id
    publishableKey
    webhookUrl
  }
}

Input:

input UpdateStripeConfigInput {
  secretKey: String          # Optional
  publishableKey: String     # Optional
  environment: StripeEnvironment  # Optional
  webhookSecret: String      # Optional
}

Response:

type UpdateStripeConfigPayload {
  id: ID!
  publishableKey: String!
  webhookUrl: String!
}

Notes:

• All fields are optional
• Only provided fields are updated
• Secret key is encrypted if provided

---

Customer Management

stripe_customer

Retrieves a single customer by ID.

Query:

query stripe_customer{
  stripe_customer(
    id: "cus_Ts..."
  )
  {
    id
    name
    email
    phone
    description
    metadata
    object
    createdAt
  }
}

---

stripe_customers

Lists customers with pagination and optional filtering.

Query:

query stripe_customers (
  $first: Int,
  $after: String,
  $customerId: String
) {
  stripe_customers (
    first: $first,
    after: $after,
    customerId: $customerId
  ) {
    edges {
      node {
        id
        name
        email
        phone
        description
        createdAt
      }
      cursor
    }
    pageInfo {
      hasNextPage
      hasPreviousPage
      startCursor
      endCursor
    }
  }
}

Parameters:

• first: Number of items to return (default: 10)
• after: Cursor for pagination
• customerId: Filter by customer ID (optional)

---

stripe_createCustomer

Creates a new customer.

Mutation:

mutation stripe_createCustomer {
  stripe_createCustomer (
    input: {
      name: "Customer",
      email: "example@archie.com",
      phone: "+573001230001",
      description: "Description Example"
      metadata: {
        data1: "Example data1",
        data2: "Example data2"
      }
    }
  )
  {
    id
    name
    email
    phone
    description
    metadata
    object
    createdAt
  }
}

---

stripe_updateCustomer

Updates an existing customer.

Mutation:

mutation stripe_updateCustomer {
  stripe_updateCustomer(
    id: "cus_Ts...",
    input: {
      name: "Customer",
      email: "example@archie.com",
      phone: "+573001230001",
      description:"Description Example",
      metadata: {
        data1: "Example data1 updated",
        data2: "Example data2 updated"
      }
    }
  )
  {
    id
    name
    email
    phone
    description
    metadata
    object
    createdAt
  }
}

Notes:

• All fields are optional
• Only provided fields are updated

---

stripe_deleteCustomer

Deletes a customer.

Mutation:

mutation stripe_deleteCustomer {
  stripe_deleteCustomer (
    id: "cus_Ts...")
}

Response:

• Returns true on success
• Returns error if customer not found

---

Payment Intents

stripe_paymentIntent

Retrieves a single payment intent by ID.

Query:

query stripe_paymentIntent {
  stripe_paymentIntent (
    id: "pi_3Su..."
  )
  {
    id
    customerId
    paymentMethodId
    currency
    amount
    status
    metadata
    object
    clientSecret
    createdAt
  }
}

---

stripe_paymentIntents

Lists payment intents with pagination and optional filtering.

Query:

query stripe_paymentIntents (
  $first: Int,
  $after: String,
  $customerId: String
) {
  stripe_paymentIntents (
    first: $first,
    after: $after,
    customerId: $customerId
  ) {
    edges {
      node {
        id
        customerId
        paymentMethodId
        currency
        amount
        status
        metadata
        object
        clientSecret
        createdAt
      }
      cursor
    }
    pageInfo {
      hasPreviousPage
      hasNextPage
      startCursor
      endCursor
    }
  }
}

Parameters:

• first: Number of items to return (default: 10)
• after: Cursor for pagination
• customerId: Filter by customer ID (optional)

---

stripe_createPaymentIntent

Creates a new payment intent.

Mutation:

mutation stripe_createPaymentIntent {
  stripe_createPaymentIntent (
    input: {
      amount: 12.35,
      currency: "usd",
      customerId: "cus_Ts...",
      paymentMethodId: "pm_1Su...",
      automaticPaymentMethods: true
    }
  )
  {
    id
    customerId
    paymentMethodId
    currency
    amount
    status
    metadata
    object
    clientSecret
    createdAt
  }
}

Notes:

• clientSecret is returned for frontend confirmation
• Use automaticPaymentMethods: true for Stripe.js integration

---

stripe_updatePaymentIntent

Updates a payment intent before confirmation.

Mutation:

mutation stripe_updatePaymentIntent{
  stripe_updatePaymentIntent(
    id: "pi_3S...",
    input: {
      amount: 36.92,
      currency: "usd",
      paymentMethodId: "pm_1Su..."
      metadata:{
        data1: "Example data1"
      }
    }
  ) {
    id
    customerId
    paymentMethodId
    currency
    amount
    status
    metadata
    object
    clientSecret
    createdAt
  }
}

Notes:

• Can only be updated before confirmation
• All fields are optional

---

stripe_confirmPaymentIntent

Confirms a payment intent.

Mutation:

mutation stripe_confirmPaymentIntent{
  stripe_confirmPaymentIntent(
    id: "pi_3Su..."
    input: {
      paymentMethodId: "pm_1Su...",
      returnUrl: "http://localhost:3000/successful-payment"
    }
  ) {
    id
    customerId
    paymentMethodId
    currency
    amount
    status
    metadata
    object
    clientSecret
    createdAt
  }
}

Notes:

• Required for completing payment
• May require 3D Secure authentication
• Returns updated status (succeeded, requires_action, etc.)

---

stripe_cancelPaymentIntent

Cancels a payment intent.

Mutation:

mutation stripe_cancelPaymentIntent {
  stripe_cancelPaymentIntent(
    id: "pi_3Su..."
  ) {
    id
    customerId
    paymentMethodId
    currency
    amount
    status
    metadata
    object
    clientSecret
    createdAt
  }
}

Notes:

• Can only cancel payment intents that are not succeeded or canceled
• Status changes to “canceled”

---

Subscriptions

stripe_subscription

Retrieves a single subscription by ID.

Query:

query stripe_subscription {
  stripe_subscription(id: "sub_1Su...") {
    id
    customerId
    status
    currentPeriodStart
    currentPeriodEnd
    createdAt
    cancelAtPeriodEnd
    metadata
    object
    items {
      data {
        id
        priceId
        quantity
      }
    }
  }
}

---

stripe_subscriptions

Lists subscriptions with pagination and optional filtering.

Query:

query stripe_subscriptions (
  $first: Int,
  $after: String,
  $customerId: String
) {
  stripe_subscriptions (
    first: $first,
    after: $after,
    customerId: $customerId
  ) {
    edges {
      node {
        id
        customerId
        status
        currentPeriodStart
        currentPeriodEnd
        createdAt
        cancelAtPeriodEnd
        metadata
        object
        items {
          data {
            id
            priceId
            quantity
          }
        }
      }
      cursor
    }
    pageInfo {
      hasPreviousPage
      hasNextPage
      startCursor
      endCursor
    }
  }
}

Parameters:

• first: Number of items to return (default: 10)
• after: Cursor for pagination
• customerId: Filter by customer ID (optional)
• status: Filter by status (optional)

---

stripe_createSubscription

Creates a new subscription.

Mutation:

mutation stripe_createSubscription {
  stripe_createSubscription (
    input: {
      customerId: "cus_TsQ...",
      items: {
        priceId: "price_1Su...",
        quantity: 1
      },
      metadata: {
        data1: "Example data1"
      },
      trialPeriodDays: 0
    }
  ) {
    id
    customerId
    status
    currentPeriodStart
    currentPeriodEnd
    createdAt
    cancelAtPeriodEnd
    metadata
    object
    items {
      data {
        id
        priceId
        quantity
      }
    }
  }
}

Notes:

• paymentBehavior can be “default_incomplete” for subscriptions requiring payment method
• Trial period is specified in days
• Latest invoice and payment intent are automatically expanded

---

stripe_updateSubscription

Updates an existing subscription.

Mutation:

mutation stripe_updateSubscription {
  stripe_updateSubscription(
    id: "sub_1Sv..."
    input: {
      cancelAtPeriodEnd: false
      metadata: {
        data2: "Example data2"
      }
    }
  ) {
    id
    customerId
    status
    currentPeriodStart
    currentPeriodEnd
    createdAt
    cancelAtPeriodEnd
    metadata
    object
    items {
      data {
        id
        priceId
        quantity
      }
    }
  }
}

---

stripe_cancelSubscription

Cancels a subscription.

Mutation:

mutation stripe_cancelSubscription {
  stripe_cancelSubscription (
    cancelAtPeriodEnd: true,
    id: "sub_1Sv..."
  ) {
    id
    customerId
    status
    currentPeriodStart
    currentPeriodEnd
    createdAt
    cancelAtPeriodEnd
    metadata
    object
    items {
      data {
        id
        priceId
        quantity
      }
    }
  }
}

Parameters:

• id: Subscription ID (required)
• cancelAtPeriodEnd: If true, cancels at period end; if false, cancels immediately (default: false)

Notes:

• Immediate cancellation: subscription ends now
• Period end cancellation: subscription continues until current period ends

---

Products and Prices

stripe_products

Lists products with pagination.

Query:

query stripe_products (
  $first: Int,
  $after: String
) {
  stripe_products (
    first: $first,
    after: $after
  ) {
    edges {
      node {
        id
        name
        description
        active
        metadata
        object
        createdAt
      }
      cursor
    }
    pageInfo {
      hasPreviousPage
      hasNextPage
      startCursor
      endCursor
    }
  }
}

---

stripe_createProduct

Creates a new product.

Mutation:

mutation stripe_createProduct {
  stripe_createProduct (
    input: {
      name: "Product 01",
      description: "Description product 01",
      metadata: {
        data1: "Example data1"
      }
    }
  ) {
    id
    name
    description
    active
    metadata
    object
    createdAt
  }
}

---

stripe_prices

Lists prices with pagination and optional filtering.

Query:

query stripe_prices (
  $first: Int,
  $after: String,
  $productId: String
) {
  stripe_prices (
    first: $first,
    after: $after,
    productId: $productId
  ) {
    edges {
      node {
        id
        productId
        active
        currency
        unitAmount
        object
        metadata
        createdAt
        recurring {
          interval
          intervalCount
        }
      }
      cursor
    }
    pageInfo {
      hasPreviousPage
      hasNextPage
      startCursor
      endCursor
    }
  }
}

Parameters:

• first: Number of items to return (default: 10)
• after: Cursor for pagination
• productId: Filter by product ID (optional)

---

stripe_createPrice

Creates a new price.

Mutation:

mutation stripe_createPrice {
  stripe_createPrice (
    input: {
      productId: "prod_Tst...",
      unitAmount: 25.85,
      currency: "usd",
      recurring: {
        interval: "month",
        intervalCount: 1
      },
      metadata: {
        data1: "Example data1"
      }
    }
  ) {
    id
    productId
    currency
    unitAmount
    active
    object
    createdAt
    metadata
    recurring {
      interval
      intervalCount
    }
  }
}

Notes:

• Omit recurring for one-time prices
• interval must be one of: “day”, “week”, “month”, “year”

---

Invoices

stripe_invoice

Retrieves a single invoice by ID.

Query:

query stripe_invoice {
  stripe_invoice (
    id: "in_1Su..."
  ) {
    id
    customerId
    subscriptionId
    currency
    amountPaid
    amountDue
    status
    object
    metadata
    createdAt
    lineItems {
      data {
        id
        description
        currency
        amount
        quantity
      }
    }
  }
}

Notes:

• Subscription ID is populated via API expansion when available

---

stripe_invoices

Lists invoices with pagination and optional filtering.

Query:

query stripe_invoices (
  $first: Int,
  $after: String,
  $customerId: String,
  $status: String
) {
  stripe_invoices (
    first: $first,
    after: $after,
    customerId: $customerId,
    status: $status
  ) {
    edges {
      node {
        id
        customerId
        subscriptionId
        currency
        amountPaid
        amountDue
        status
        object
        metadata
        createdAt
        lineItems {
          data {
            id
            description
            currency
            amount
            quantity
          }
        }
      }
      cursor
    }
    pageInfo {
      hasPreviousPage
      hasNextPage
      startCursor
      endCursor
    }
  }
}

Parameters:

• first: Number of items to return (default: 10)
• after: Cursor for pagination
• customerId: Filter by customer ID (optional)
• status: Filter by status (optional)

---

stripe_payInvoice

Pays an invoice programmatically.

Mutation:

mutation stripe_payInvoice {
  stripe_payInvoice (
    id: "in_1Sv..."
  ) {
    id
    customerId
    subscriptionId
    currency
    amountPaid
    amountDue
    status
    object
    metadata
    createdAt
    lineItems {
      data {
        id
        description
        currency
        amount
        quantity
      }
    }
  }
}

Notes:

• Attempts to pay the invoice using the customer’s default payment method
• Returns error if payment fails
• Updates invoice status to “paid” on success

---

Refunds

stripe_refunds

Lists refunds with pagination and optional filtering.

Query:

query  stripe_refunds (
  $first: Int,
  $after: String,
  $paymentIntentId: String
)  {
  stripe_refunds (
    first: $first,
    after: $after,
    paymentIntentId: $paymentIntentId
  ) {
    edges {
      node {
        id
        paymentIntentId
        reason
        status
        currency
        amount
        metadata
        object
        createdAt
      }
      cursor
    }
    pageInfo {
      hasPreviousPage
      hasNextPage
      startCursor
      endCursor
    }
  }
}

Parameters:

• first: Number of items to return (default: 10)
• after: Cursor for pagination
• paymentIntentId: Filter by payment intent ID (optional)

---

stripe_createRefund

Creates a refund for a payment intent.

Mutation:

mutation stripe_createRefund {
  stripe_createRefund (
    input: {
      paymentIntentId: "pi_3Sv...",
      amount: 200,
      reason: "requested_by_customer"
    }
  ) {
    id
    reason
    paymentIntentId
    status
    currency
    amount
    object
    metadata
    createdAt
  }
}

Notes:

• Omit amount for full refund
• reason can be: “duplicate”, “fraudulent”, “requested_by_customer”
• Refund status starts as “pending” and updates to “succeeded” or “failed”

---

Payment Methods

stripe_paymentMethods

Lists payment methods with pagination and optional filtering.

Query:

query stripe_paymentMethods (
  $first: Int,
  $after: String,
  $customerId: String
) {
  stripe_paymentMethods(
    first: $first,
    after: $after,
    customerId: $customerId
  ) {
    edges {
      node {
        id
        customerId
        type
        object
        metadata
        createdAt
        card {
          brand
          expMonth
          expYear
          last4
        }
      }
      cursor
    }
    pageInfo {
      hasPreviousPage
      hasNextPage
      startCursor
      endCursor
    }
  }
}

Parameters:

• first: Number of items to return (default: 10)
• after: Cursor for pagination
• customerId: Filter by customer ID (optional)

Notes:

• Only safe card information is returned (last4, brand, expiration)
• Full card numbers are never exposed

---

stripe_attachPaymentMethod

Attaches a payment method to a customer.

Mutation:

mutation stripe_attachPaymentMethod {
  stripe_attachPaymentMethod (
    id: "pm_1Sv...",
    input: {
      customerId: "cus_Ts4..."
    }
  ) {
    id
    customerId
    type
    card {
      brand
      expMonth
      expYear
      last4
    }
    metadata
    object
    createdAt
  }
}

Notes:

• Payment method must be created first (typically via Stripe.js)
• Attached payment methods can be used for subscriptions and payments

---

stripe_detachPaymentMethod

Detaches a payment method from a customer.

Mutation:

mutation stripe_detachPaymentMethod {
  stripe_detachPaymentMethod (
    id: "pm_1Sv..."
  ) {
    id
    customerId
    type
    card {
      brand
      expYear
      expMonth
      last4
    }
    metadata
    object
    createdAt
  }
}

Notes:

• Detached payment methods can no longer be used for payments
• Returns the payment method with customerId set to null

---

Webhook Events

stripe_webhookEvents

Lists webhook events received by the service.

Query:

query ListWebhookEvents (
  $first: Int,
  $after: String
) {
  stripe_webhookEvents (
    first: $first,
    after: $after
  ) {
    edges {
      node {
        id
        type
        data
        processed
        createdAt
      }
      cursor
    }
    pageInfo {
      hasNextPage
      hasPreviousPage
      endCursor
    }
  }
}

Response:

type StripeWebhookEvent {
  id: ID!
  type: String!              # Event type (e.g., "payment_intent.succeeded")
  data: String!              # JSON string of event data
  processed: Boolean!        # Whether event has been processed
  createdAt: Time!
}

Parameters:

• first: Number of items to return (default: 10)
• after: Cursor for pagination

Notes:

• Events are automatically received via webhook endpoint
• Events are stored after signature verification
• data field contains the full event payload as JSON string

---

Pagination

All list queries support cursor-based pagination using the Relay connection pattern.

PageInfo

type PageInfo {
  hasNextPage: Boolean!
  hasPreviousPage: Boolean!
  startCursor: String
  endCursor: String
}

Usage Example

query ListCustomers (
  $first: Int,
  $after: String
) {
  stripe_customers (
    first: $first,
    after: $after
  ) {
    edges {
      node {
        id
        email
      }
      cursor
    }
    pageInfo {
      hasNextPage
      endCursor
    }
  }
}

Pagination Flow:

1. Initial request: first: 10, after: null
2. Use pageInfo.endCursor from response as after in next request
3. Check hasNextPage to determine if more pages exist

Default Values:

• first: Defaults to 10 if not provided
• after: Starts from beginning if not provided

---

Error Handling

All operations return GraphQL errors with user-friendly messages. Errors are mapped from Stripe API errors to provide clear feedback.

Common Error Scenarios

Configuration Errors:

• 400: Invalid Stripe keys format
• 404: Project or configuration not found
• 400: Configuration already exists

Customer Errors:

• 404: Customer not found
• 400: Invalid customer data

Payment Intent Errors:

• 404: Payment intent not found
• 400: Invalid amount or currency
• 402: Payment failed (card declined, insufficient funds, etc.)

Subscription Errors:

• 404: Subscription not found
• 400: Invalid subscription parameters
• 400: Cannot update canceled subscription

Stripe Error Codes: Common Stripe error codes are mapped to user-friendly messages:

• card_declined: “Your card was declined”
• insufficient_funds: “Insufficient funds”
• invalid_number: “Invalid card number”
• expired_card: “Card has expired”
• incorrect_cvc: “Incorrect CVC code”

Error Response Format

{
  "errors": [
    {
      "message": "Customer not found",
      "extensions": {
        "code": "NOT_FOUND",
        "stripeErrorCode": "resource_missing"
      }
    }
  ],
  "data": null
}

---

Data Types

StripeEnvironment

enum StripeEnvironment {
  TEST  # Test mode
  LIVE  # Live/production mode
}

Map Scalar

The Map scalar type represents a key-value map where:

• Keys are strings
• Values can be strings, numbers, booleans, or nested maps
• Used for metadata fields

Example:

{
  "metadata": {
    "order_id": "12345",
    "user_id": "67890",
    "premium": true
  }
}

Time Scalar

The Time scalar type represents ISO 8601 formatted timestamps.

Example: "2025-11-16T00:28:48.081Z"
